Energy Saving Devices

Price: $47.84
(as of May 06, 2025 11:50:48 UTC – Details)

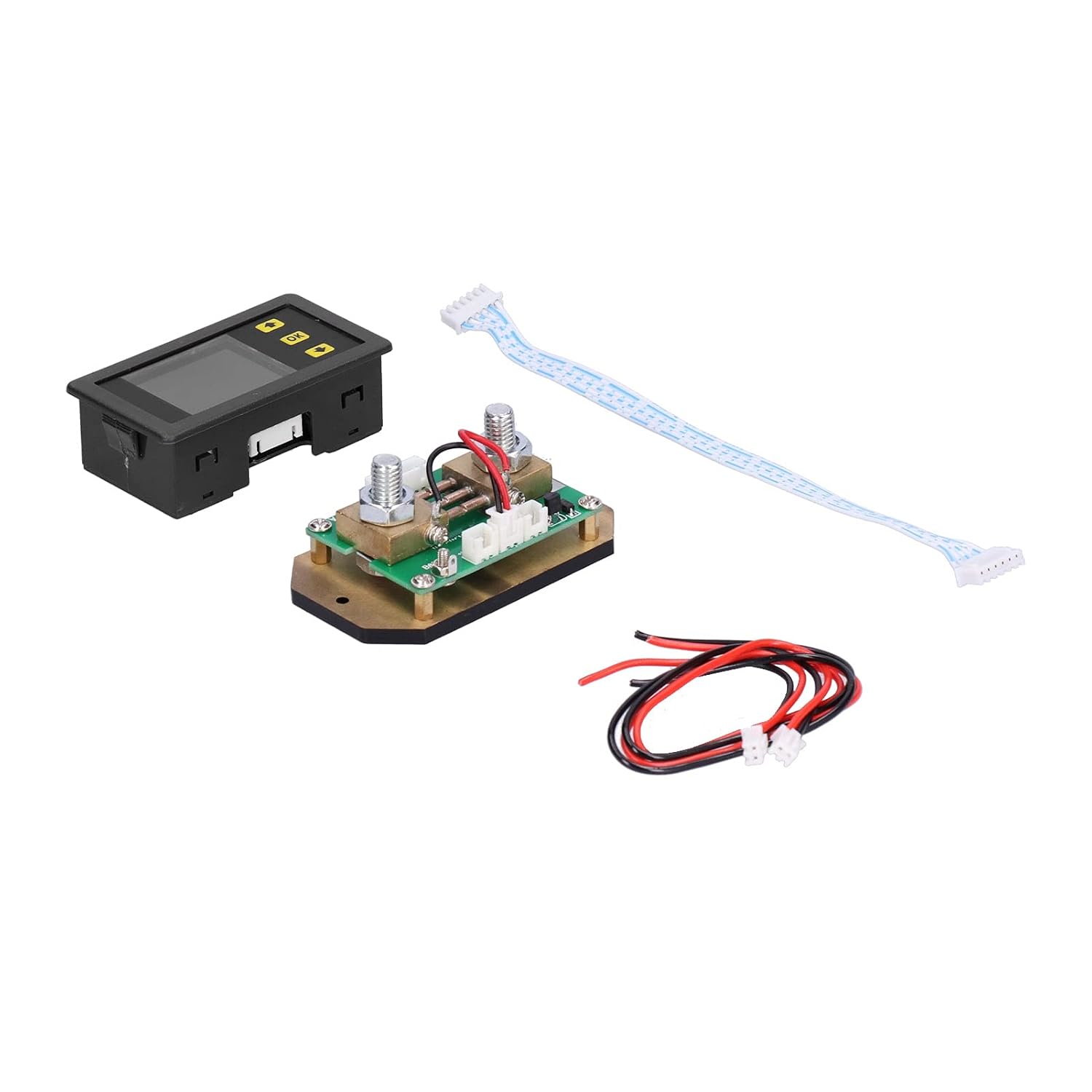

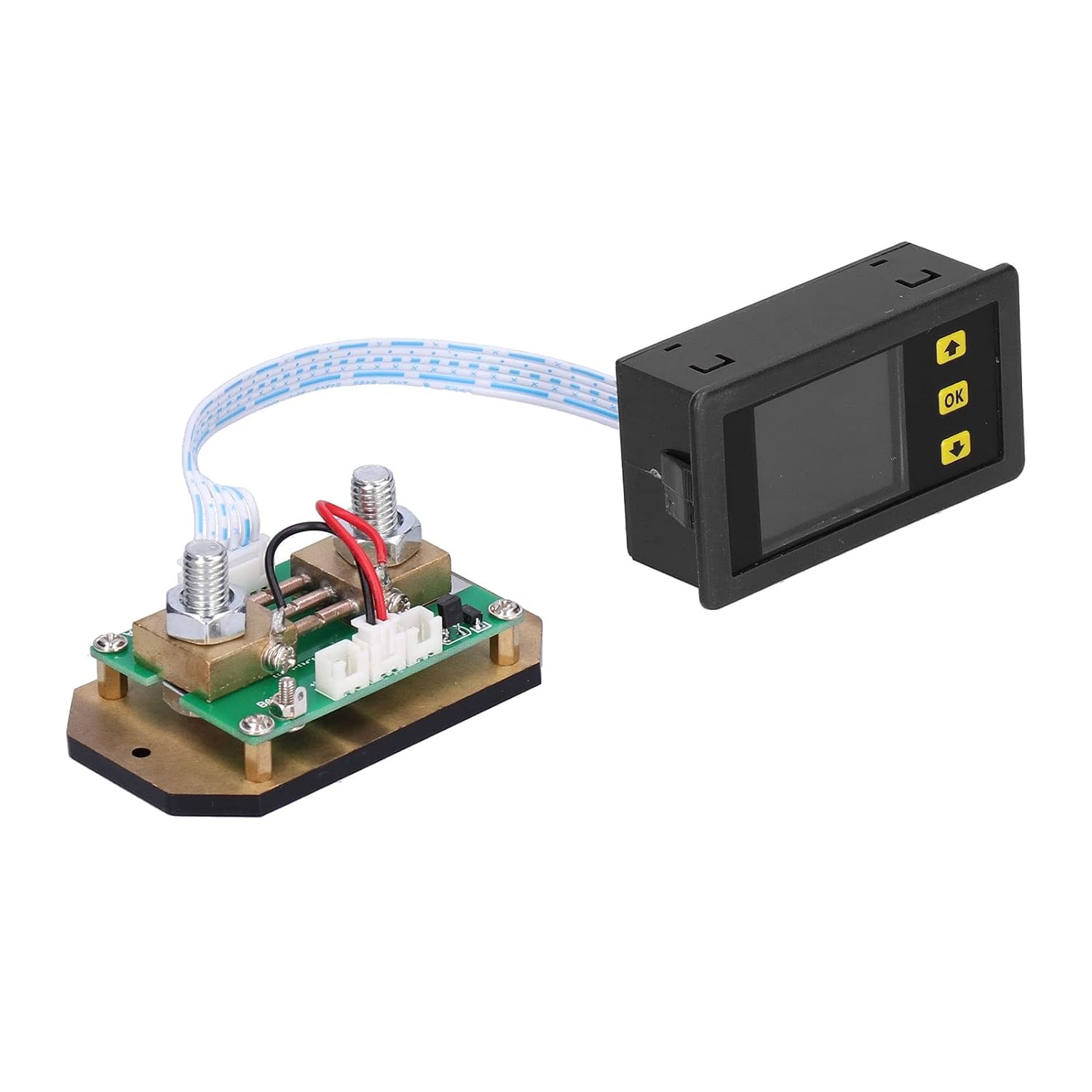

Item Type: LCD Combo Meter Voltage
Material: Resin
Input Voltage
Measuring Range When Self-Powered: 6-75V
Measurement Range When External Power Supply: 0-120V
External Power Supply Voltage: 6-60V
Display Mode: 1.8 Inch LCD Display
Measuring Range
Voltage: 0.01-120V
Capacity: 0.001AH-65000AH
Energy: 0.00KWH-99999.9kWh
Time: 0-100 Hours
Power Value: 99KW
Temperature: 1-100 Degrees Celsius
Accuracy
Voltage: ±1%
Current: ±2%
Temperature: ±1 Degrees Celsius
Measurement Rate: 5 Times/Sec
Type and Scope of Protection
OVP (Over Voltage Protection): 0.01-500V
LVP (Undervoltage Protection): 0.01-500V
OCP ( Overcurrent Protection): 0-1000A
NCP (Dis Overcurrent Protection): 0-1000A
OTP (Over Temperature Protection): 0-100 Degrees Celsius
Features
1. BAT battery capacity value setting, this parameter is to set the measured total capacity of the battery.
2. BPC battery remaining capacity percentage, you can set the remaining battery AH number according to this value.
3. OVP sets the over-voltage protection value. If the OVP value is set, when the actual measured voltage value is greater than the set value, it will prompt over-voltage and cut off the relay (self-distribution).
4. LVP sets the overvoltage protection value. If the LVP value is set, when the actual measured voltage value is less than the set value, it will prompt undervoltage and cut off the relay (self-equipped)
5. NCP sets the over-voltage protection value. If the NCP value is set, when the actual measured charging current value is less than the set value, it will prompt over-current and cut off the relay (self-equipped)
6. OCP sets the over-voltage protection value. If the OCP value is set, when the actual measured dis current value is less than the set value, it will prompt over-current and cut off the relay (self-equipped)
7. OTP sets the over temperature protection
Package Dimensions ‏ : ‎ 5.12 x 3.54 x 3.54 inches; 10.48 ounces
Item model number ‏ : ‎ FUZHUIh8b2wqsp5z-11
Date First Available ‏ : ‎ February 24, 2025
Manufacturer ‏ : ‎ FUZHUI
ASIN ‏ : ‎ B0DY8W5RM2
Country of Origin ‏ : ‎ China
Comprehensive Display: Simultaneously shows voltage, current, charging capacity, WH number, time, and power for clear and comprehensive information.
Advanced Protection: Features overvoltage, overcurrent, and overtemperature protection for safe .
Flexible Detection: Supports two-way detection of current, allowing easy charging and discharging measurement without changing wiring direction.
Memory Function: Retains AH and WH numbers after power-off, facilitating observation and measurement.
sturdy Material: Made of resin for enhanced durability and longevity.
